ARTICULATED DUMP TRUCK SCRAPERS
K-TEC 1243 ADT
When the job requires larger capacity with long haul roads, the K-Tec 1243ADT excels even in the toughest conditions. The 1243ADT scraper’s bolt-together design allows for simple maintenance and affordable international container shipping. While proficient in self-loading, the standard roller push block on the back of the scraper is smoothly matched for push support loading for swift cycle times of the 43 Cubic Yard heaped capacity scraper.
Download Complete Brochure (Printer Friendly)
ARTICULATED DUMP TRUCK SCRAPERS
K-TEC 1243 ADT
When the job requires larger capacity with long haul roads, the K-Tec 1243ADT excels even in the toughest conditions. The 1243ADT scraper’s bolt-together design allows for simple maintenance and affordable international container shipping. While proficient in self-loading, the standard roller push block on the back of the scraper is smoothly matched for push support loading for swift cycle times of the 43 cubic yard / 33 cubic metre heaped capacity scraper.
Download Complete Brochure (Printer Friendly)
FEATURES
Explore the unique features of the K-Tec 1243 ADT. The K-Tec 1243 ADT is designed for self-loading with a 40-ton, 450+ horsepower rock truck. The 1243 ADT utilizes K-Tec’s proprietary gooseneck hitching system, and has a PSI strength which is significantly greater than many competing scrapers. It features fast hydraulics, a smooth ride, and joystick scraper control.
LUBE TEC
Grease-less bushings and only 7 grease points
TENSILE TEC
Hardox / Weldox steel technology makes stronger and lighter scrapers
LOAD TEC
The ADT gooseneck transfers 30% weight to the truck
CUSHION RIDE
Experience a smoother ride and reduce equipment wear
SELF LOAD
Capable of easily achieving ISO heaped capacity with a single power unit
TOP LOAD
Tiltable rack for easy top loading
PUSH LOAD
Rear push block for perfect push loading, increasing cycle times
GPS READY
GPS and Laser Mount for precise efficient earthmoving
WARRANTY
Industry leading 3 year structural / 6 month parts and labor warranty
SHIPPING
Available for containerized international shipping
CERTIFIED
The highest operating standards with ISO 9001:2015 certification
CERTIFIED
Leading the pack in quality and sustainability with CE Certification
FEATURES
Explore the unique features of the K-Tec 1243 ADT. The K-Tec 1243 ADT is designed for self-loading with a 40-ton, 450+ horsepower rock truck. The 1243 ADT utilizes K-Tec’s proprietary gooseneck hitching system, and has a PSI strength which is significantly greater than many competing scrapers. It features fast hydraulics, a smooth ride, and joystick scraper control.
LUBE TEC
Grease-less bushings and only 7 grease points
TENSILE TEC
Hardox / Weldox steel technology makes stronger and lighter scrapers
LOAD TEC
The ADT gooseneck transfers 30% weight to the truck
CUSHION RIDE
Experience a smoother ride and reduce equipment wear
SELF LOAD
Capable of easily achieving ISO heaped capacity with a single power unit
TOP LOAD
Tiltable rack for easy top loading
PUSH LOAD
Rear push block for perfect push loading, increasing cycle times
GPS READY
GPS and Laser Mount for precise efficient earthmoving
WARRANTY
Industry leading 3 year structural / 6 month parts and labor warranty
SHIPPING
Available for containerized international shipping
CERTIFIED
The highest operating standards with ISO 9001:2015 certification
CERTIFIED
Leading the pack in quality and sustainability with CE Certification
FEATURES
Explore the unique features of the K-Tec 1243 ADT. The K-Tec 1243 ADT is designed for self-loading with a 40-ton, 450+ horsepower rock truck. The 1243 ADT utilizes K-Tec’s proprietary gooseneck hitching system, and has a PSI strength which is significantly greater than many competing scrapers. It features fast hydraulics, a smooth ride, and joystick scraper control.
LUBE TEC
Grease-less bushings and only 7 grease points
LOAD TEC
The ADT gooseneck transfers 30% weight to the truck
SELF LOAD
Capable of easily achieving ISO heaped capacity with a single power unit
PUSH LOAD
Rear push block for perfect push loading, increasing cycle times
WARRANTY
Industry leading 3 year structural / 6 month parts and labor warranty
ISO CERTIFIED
The highest operating standards with ISO 9001:2015 certification
TENSILE TEC
Hardox / Weldox steel technology makes stronger and lighter scrapers
CUSHION RIDE
Experience a smoother ride and reduce equipment wear
TOP LOAD
Tiltable rack for easy top loading
GPS READY
GPS and Laser Mount for precise efficient earthmoving
SHIPPING
Available for containerized international shipping
CERTIFIED
Leading the pack in quality and sustainability with CE Certification
NEWS ARTICLES FEATURING THE 1243 ADT
TRUSTED TESTIMONIALS
These scrapers do a great job. It is a multi-purpose thing, you know, you can do more than one thing with them. Basically, what they do is when you unload them, they just keep on driving. They spread out a foot of material, and bingo, they’re gone. You gotta try new things, you cannot be stuck in the f***** past.
We have seven K-Tec scrapers that are being pulled by Volvo trucks. With the full suspension trucks the operators are not getting beat around and can run at high speeds and the ride is tremendous. The sites we’re on can be very high in moisture so with the flotation of the K-Tec scrapers they ride up very well on the haul roads so it takes minimal maintenance with them.
Some of the advantages we really like with the K-Tec 1263 ADT scrapers and Volvo trucks is the overall size of the truck and pan, the horsepower it has, the overall speed that we can run efficient cycle times on. All of those roll into being more effective when we have longer haul operations and they really shine on these long hauls carrying a big payload.
JDC had been seeking a scraper with high-speed performance to achieve a major breakthrough in large earthworks, and finally found that K-Tec is the solution.
We are going to reinforce K-Tec’s performance in Japan and will expand it into Asian countries shortly.
The K-Tec scrapers are designed really well, they have a door that pushes past the floor so we don’t have any problems with material hanging up, we don’t have any lag time with these pans and we’ve had a lot of success with them. I don’t have any reason to use anything else at this point because I’m really happy with what we’ve got.
Heaped Capacity (ISO) | 43 Cubic Yards |
Struck Capacity | 25.7 Cubic Yards |
Max Loading Rating | 103,200 lbs |
Bucket Dimensions | 12′ W x 5′ H x 13′ 5″ L |
Cutting Width | 12′ |
Cutting Edge | 3-Piece Blade |
Gate Opening | 6′ |
Turning Radius | 30′ |
Gate Cylinders | 4.5″ x 26.5″ |
Lift Cylinders | 5.5″ x 38″ |
Ejector Cylinder | 5.5″ x 76″ |
Cutting Edge Clearance | 27.5″ |
Ball to Rear Axle Length | 31′ 9″″ |
Rack Height (Tiltable) | 3′9″ |
Weight Distribution | 28% Hitch, 72% Scraper Axle |

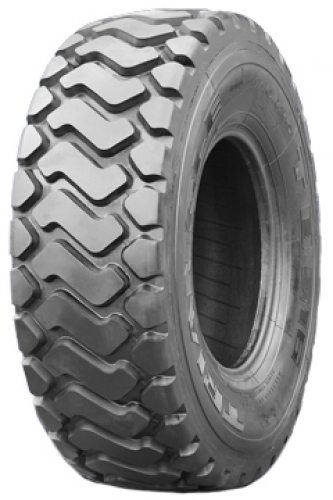

4 Tires | 29.5 R25 Radial |
Horsepower Required | 450HP + |
Wrap Around Mud Scrapers | Standard |
Roller Push Block | Standard |
Truck Fender & Catwalk System | Standard |
Overall Width | 14′ |
Overall Height | 10′ 11″ |
Overall Length | 40′ 2″″ |
Shipping Weight | 49,450 lbs |
Overseas Shipping | 40′ Highcube container |

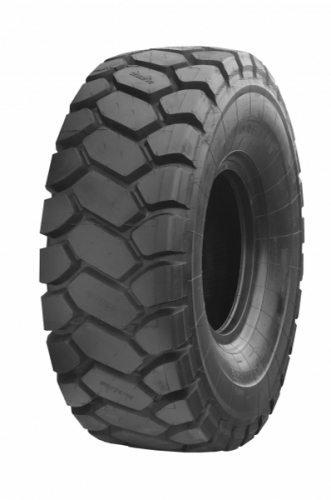

Radial Tires (4) | 29.5 R29 or 24 R35 |
Brake System | 4 or 8 Caliper Disc System |
Specifications are subject to change without notice.
COMPATIBLE POWER UNITS
The K-Tec Articulated Dump Truck Hitch is an intricate system of steel, hydraulic, and electrical assemblies that transfers 28% of the scraper weight to the truck. The intelligent programming and in-cab comforts will improve operator performance for enhanced productivity. The K-Tec 1243 ADT can be pulled by any articulated dump truck with 450HP+ (330 kW+). K-Tec has developed hitches for a wide range of power units.
The ADT hitch package includes:
Custom Bracketry to fit the specific ADT Model, Hydraulic Filters, Electronic Wiring Harnesses, Computer Controller and Software, 5” Touch Display Screen, Complete On-Site set-up, Fender System, Truck Chassis Catwalk System, and Joystick Control unit with padded armrest.
K-Tec Scrapers are compatible with a wide range of power units. The above list of compatible units is not exhaustive.
